Corrugated Pipe

PVC CORRUGATED ELECTRICAL CONDUIT CABLE PROTECTION HOSE

Execution standards for pipes



ASTMD F949-20(PVC)
NEMA TC 13-2014(R2019)

UL 1653

CSA C22.2  NO. 227.1:19

FT4 Fire Rating

Classification: Corrugated Pipe
Share:

Manufactured to ETL and UL1653 standards, the ETL PVC corrugated electrical conduit cable protection hose is designed to shield cables from physical damage, moisture, and environmental factors, ensuring the long-term integrity of your electrical systems.

Cost-Effective, High-Performance, and Reliable

Offering affordability and reliability, the ETL PVC corrugated electrical conduit is an excellent alternative to metallic tubing, providing comparable performance at a lower cost. Crafted from high-quality PVC, these corrugated cable protection hoses boast outstanding flexibility, allowing easy routing in tight spaces while maintaining superior strength. It features an Anti-Bend rating of up to 4,448N and an Impact Resistance of 2.7J, ensuring protection against harsh environmental conditions and physical wear.

Customizable for Diverse Applications

Available in a wide range of sizes (from 1/2 inch to 2-1/2 inches), the ETL PVC corrugated electrical conduit can be customized to meet specific project requirements. Through our OEM/ODM services, you can adjust the size, color, and packaging to perfectly align with your installation needs.
Choose ETL for high-quality cable protection solutions that offer both durability and flexibility, ensuring your electrical cables are well-protected in any environment.

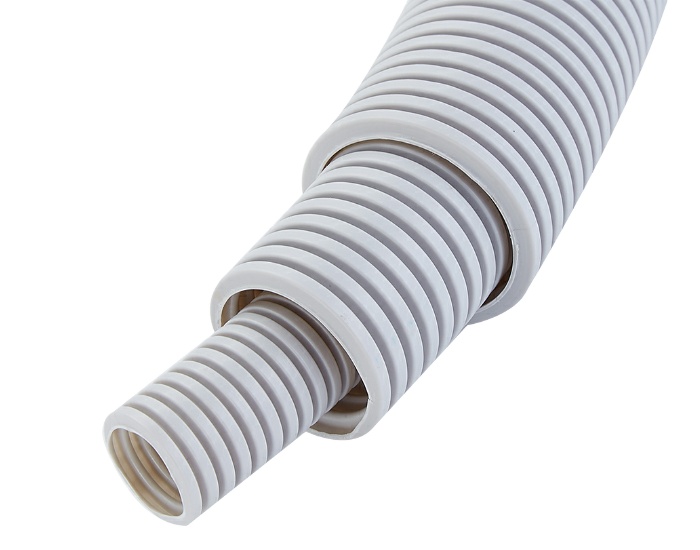

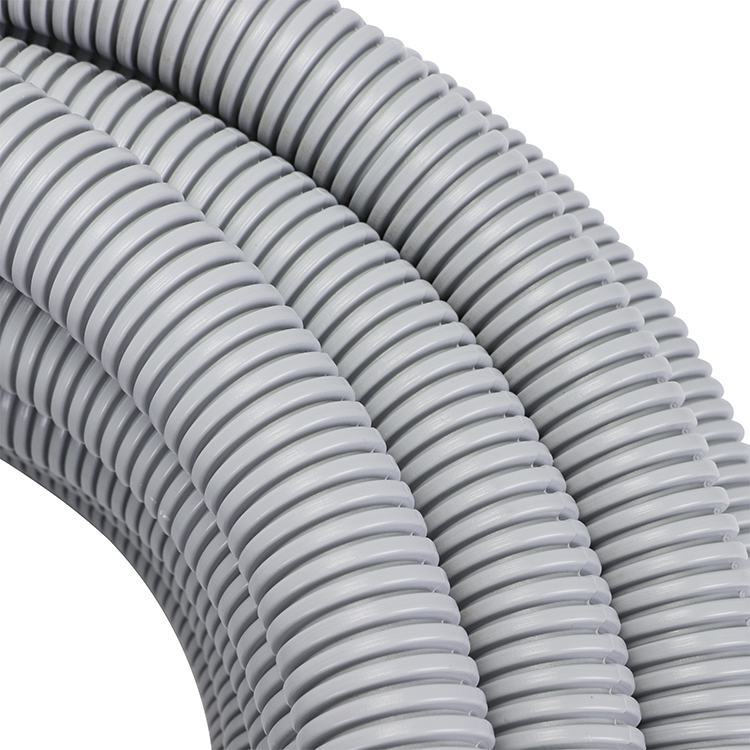

             PVC Corrugated Electrical Conduit



 Raw material  PVC
 Standards   ul1653 & CSA C22.2  NO. 227.1:19 & FT4 Fire Rating
 Length    By Pack
 Color  Grey, Blue, Red,Yellow or customized to suit your project needs
 Anti-Bend

 Up to 4,448N (1,000 lb), No Cracked

 Feature   Character-flame resistant, UV resistant, corrosion resistant, etc
 Custom made    Flexiable OEM/ODM-size, colors, packaging can be customized
 Tensile strength  Up to 134N (300lbf)
 Extrusion  Fusion
 Fire Resistant  2 Hour & 4 Hour Noncombustible
 Resistance to crushing  ID≥70% after test
 Resistance to impact     2.7J (2.0ft-lbf)
 Deflection unde load    0.25mm deformation
 Fire rating      UL 94V-0
 Markings Test  No visible fading in oven test above 120°C for 7 days
 Permanency of printing      Yes
 Rust & sunlight Resistant    Yes
 Shipping    By sea
 Samples       Available

Electrical conduit PVC-U

            Regular sizes as shown in the table below

ENT Coils – Stripe

Size(in) OD(in) ID(in) Length Feet
 1/2 0.84 0.602 Customized
 3/4 1.05 0.804 Customized
1 1.315 1.029 Customized
1-1/4 1.66 1.36 Customized
1-1/2 1.9 1.59 Customized
2 2.375 2.047 Customized

ENT Reels – Stripe

Size(in) OD(in) ID(in) Length Feet
 1/2 0.84 0.602 Customized
 3/4 1.05 0.804 Customized
1 1.315 1.029 Customized
1-1/4 1.66 1.36 Customized
1-1/2 1.9 1.59 Customized
2 2.375 2.047 Customized
2-1/2 2.866 2.469 Customized


Information to be marked on conduits

The following should be clearly and permanently marked on the ENT tube at intervals of not more than 1.5 m (60 in):

content:

(A) The Manufacturer’s nName, Trademark or Other Recognized Identifier;.

(B) “ENT” Type.

(C) “FT4” when Tested According to Clause 7.3; CSA C22.2 NO.227.1-06 UL 1653 21.

(D) Construction Material “PVC”.

(E) Metric and Imperial Dimensions, such as 16 (1/2).

(F) Production Code (Date of Manufacture);

(G) “For Residential Attics 900 mm (3 ft) above the Bottom of the Ceiling Joists” when the ENT Material Complies with Clause 4.1.4;

(H) In the United States, when the Manufacturer has Multiple Plants Producing Electrical Non-Metallic Bellows, Identify the Production Plant. In Canada, Subparagraph (h) Does not Apply.

(I) In Canada,Trade Size 63 (2-1/2) should be marked “Canada Only”.



The Smallest Package of Finished Cut Lengths, Rolls or Reels Shall be Marked with:

(1)The Manufacturer’s Name, Trademark or Other Recognized Identifier;

(2) “ENT” Type;

(3) Construction Material “PVC”;

(4) Metric and Imperial Dimensions, such as 16 (1/2);

(5) The Total Length of the Product in the Package;

(6) The Manufacturer’s Instructions for Fixing the Solvent Connection Fittings (This Mark may Appear on the Packaging or in the Accompanying Booklet);

(7) “For Residential Attics 900 mm (3 ft) above the Bottom of the Ceiling Joists” when the Electrical Non-Metallic Bellows Material Complies with Section 4.1.4.

(8) In Canada, Trade Size 63 (2-1/2) should be Marked “Canada Only”.



(1) What is Corrugated Electrical Conduit?

Corrugated Electrical Conduit is a corrugated flexible conduit used for electrical raceways, which is designed to replace EMT, flexible metal conduit, or other raceway systems in accordance with Article 331 of the National Electrical Code. It can be installed in concrete slabs, fire-rated interior walls, directly buried, and buildings.

(2)Why You Need UL Listed Electrical Nonmetallic Tubing?

ETL electrical nonmetallic tubing range stands out with its multitude of benefits. They’re lightweight, easy-to-install, corrosion-resistant, and rust-free, offering notable savings compared to traditional metal conduits. Ideal for home renovations, education institutions, hospitals, governmental projects, and more.

ETL ENT electrical conduits profoundly enhance construction quality while reducing labor expenses.



These include

(1) Indoor electrical installation  (2) Building renovation and refurbishment

(3) Transportation facilities such as railways, highways, bridges, etc.  (4) Urban power grid construction and renovation

(5) Automation equipment and production lines  (6) Mechanical equipment  (7) Agricultural irrigation systems

(8) Home decoration  (9) installation of electrical equipment such as lamps and sockets for line protection



(3)Here’s What Sets us Apart

Certification: Certification: Our PVC electrical non-metallic tubing conforms to the requirements of ul and NEMA standards and has excellent safety.

New materials: Made with 100% new materials, pursuing ultimate quality and performance.

Excellent fire resistance: UL 94V-0 Fire rating ensures rapid fire extinguishing, providing protection for your home or building.

Unparalleled durability: Heat resistance, sun resistance, and corrosion resistance ensure a long-lasting and reliable solution.

Strength:ETL is a leading manufacturer of high-quality electrical conduits, trusted by industry professionals for 10 Years+.ETL bringing you complete, beneficial, convenient, and high-quality electrical conduit and accessory products.

(4)We believe in

Safety first: Building reliable and safe electrical systems.

Quality craftsmanship: Precise engineering and attention to detail.

Customer satisfaction: Providing exceptional support and solutions.



Get exclusive solutions for your project immediately!

Contact ETL >>   to learn about the differences in high-quality electrical conduits



Built for strength and safety comply with US market standards

ETL electrical corrugated pipes and accessories are designed to handle even the most demanding electrical projects.

(1)Extraordinary strength: Up to 4,448N Anti-Bend impacts with ease.

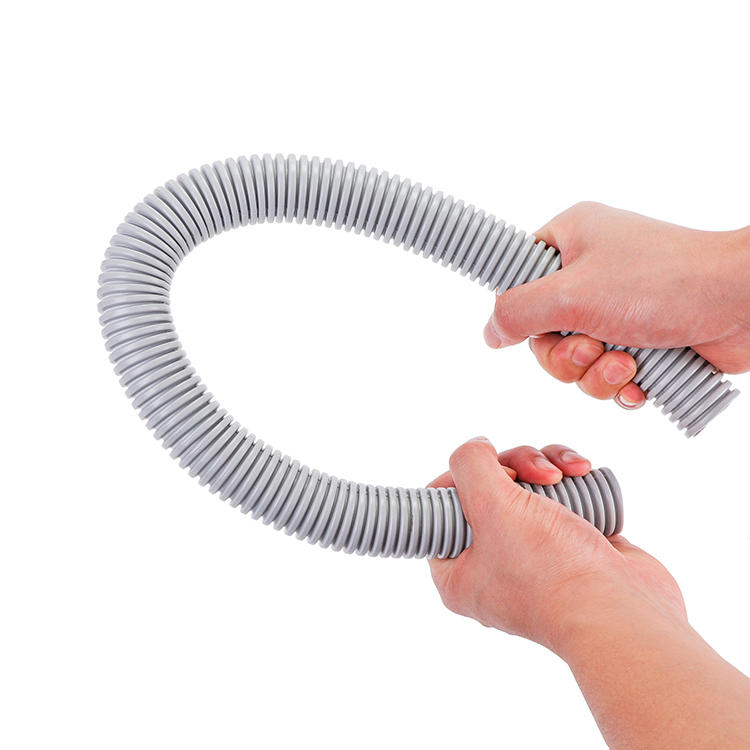

(2)Flexible deflection: 2.7J impact resistant ratings, resists bending with ease.

(3)Industry-leading compliance: Meets and exceeds ul651 and ETL standards for ultimate peace of mind.

140x140
140x140

Our electrical corrugated conduit pipes are crafted from premium-grade, 100% brand-new materials.

(1)Superior quality: ETL pvc electrical corrugated pipes have a series of impressive advantages: heat resistance, corrosion resistance, fire resistance, lightweight and flexible high strength and voltage resistance, excellent insulation performance, and good flame retardancy.
(2)Increased efficiency: Save money by avoiding costly delays.

(3)Effortless installation: No more time-consuming prep work before installation.



UL 94V-0 fire resistance rating enhanced fire safety, designed for you.

(1)Rapid extinguishing: The fire is quickly extinguished when the fire source is cut off.

(2)Harmless safety: Using ETL pvc electrical corrugated conduits,This advanced technology minimizes potential damage and keeps you and your property protected.

140x140
140x140

Sunlight resistance built for the outdoors.

our pvc electrical corrugated pipes excel in outdoor installations.

(1)Heat resistance: Sunlight & UV resistance support.

(2)UV resistance: Stands strong against the damaging effects of sunlight.



Non - metallic conduit strong and reliable.

(1)Lightweight construction: Easy to handle and install.

(2)Cost-effective solution:More durable and affordable than metal pipes, with cheaper shipping costs.

(3)Corrosion-proof: Enjoy lasting performance with guaranteed protection against rust.

140x140
140x140

Trusted partner

With over 10 years of experience in the foreign trade of plastic piping.

ETL produce and distribute nationwide, providing one-to-one services to numerous companies in various countries such as the united states and australia.

our professional team can tailor perfect solutions according to your unique needs. experience the safety and reliability of ETL pvc electrical Corrugated conduits!





140x140

(1)Airport electric power facilities

140x140

(2)Highway transportation infrastructure power projects

140x140

(3)Industrial Park Power Supplying System



140x140

(4)Smart Grid and New Energypower Generation Projects



140x140

(5)Urban Power Grid Construction Projects



Get the full price list now by contact our sales team.  >>





(1)OEM&ODM

OEM/ODM options are available for sizes, colors, and packaging.

(2)Quality

Provide overall solutions for various high-quality plastic pipes and accessories products.

(3)Price

Can be negotiable with flexible solution.

(4)Main Business

Supply PVC Electrical Conduit & Fittings:

(1) Rigid and corrugated conduit pipe for electrical, building, and communication projects. SCH40, SCH80, DB60, DB100, DB120, TYPE A, TYPE EB PVC electrical conduit (UL & ASTM certified).

(2) Heavy duty & medium duty conduit (AS/NZS Certified).

(3) DB2 & ENT conduit (CSA & CUL certified).

(4) Solar conduit (IEC & AS/NZS certified).

(5) ETL rigid & corrugated conduit (IEC & ISO certified) and that’s just the tip of the lceberg!

(6) We also offer a wide variety of electrical box, bend, coupling, tee, elbow,ib bodies, reducer, connectors, adapter, bushing, cap and more.





Contact ETL >>

Now to discuss your project and help you reduce project costs get a free quote today !







Applications of ETL and ul1653 UPVC Electrical Corrugated Pipes Conduits

ETL electrical corrugated UPVC conduits are highly versatile and widely used across various sectors due to their durability, non-conductive properties, and resistance to environmental factors.



Below are some of their key applications:

1、Construction industry

Indoor electrical installation: ETL PVC corrugated electrical conduit is very suitable for protecting and fixing indoor electrical circuits due to its lightweight, easy to bend, and easy installation characteristics. It can effectively hide wires, making the indoor environment cleaner and more beautiful.

Building renovation and refurbishment: During the renovation or refurbishment of old buildings, ETL PVC corrugated electrical conduits can serve as important components for updating electrical systems. Its corrosion resistance and long lifespan ensure the long-term stable operation of the electrical system.



2、Transportation and Infrastructure

Transportation facilities: ETL PVC corrugated electrical conduits are used to protect electrical circuits from external environmental damage in transportation facilities such as railways, highways, and bridges. Its weather resistance and pressure resistance ensure the safe operation of electrical circuits under various harsh conditions.

Urban power grid: In the construction and renovation of urban power grids, PVC corrugated electrical conduits, as an important component of cable conduits, play a guiding and protective role. It helps to arrange and fix cables neatly, improving the safety and reliability of cable systems.



3、Industry and Manufacturing

Factory automation: In highly automated factories, ETL PVC corrugated electrical conduits are widely used for the protection of electrical circuits such as robots, automation equipment, and production lines. Its flame retardancy and corrosion resistance ensure the safe operation of electrical circuits in complex industrial environments.

Mechanical equipment: Among various types of mechanical equipment, ETL PVC corrugated electrical conduits are used to protect wires and cables from mechanical damage and external environmental interference. It helps to extend the service life of wires and cables, and improve the reliability and stability of equipment.



4、Other fields

Agricultural irrigation: Although ETL PVC corrugated electrical conduits are mainly used for protecting electrical circuits, they can also be used as pipelines for transporting water resources in some agricultural irrigation systems. Its pressure resistance and weather resistance enable it to operate stably under various environmental conditions.

Home decoration: In home decoration, ETL PVC corrugated electrical conduits can be used to hide and protect wires, improving the safety and aesthetics of the home environment. It can also be used for installing circuit protection for electrical equipment such as lamps and sockets.
