ASTMD F949-20（PVC）
NEMA TC 13-2014(R2019)
UL 1653
CSA C22.2 NO. 227.1:19
FT4 Fire Rating

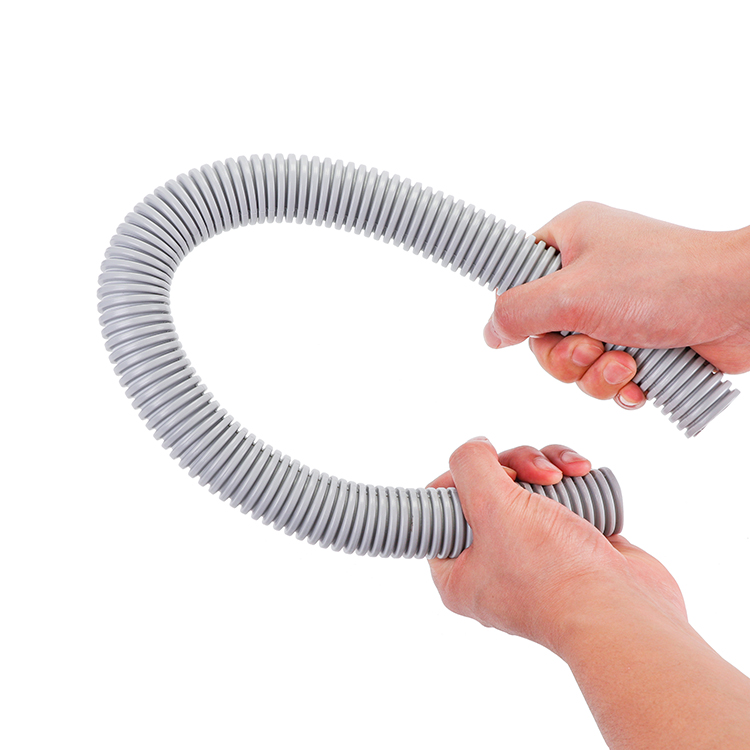

PVC Corrugated Electrical Conduit
| Raw material | PVC | |||||||
| Standards | ul1653 & CSA C22.2 NO. 227.1:19 & FT4 Fire Rating | |||||||
| Length | By Pack | |||||||
| Color | Grey, Blue, Red,Yellow or customized to suit your project needs | |||||||
| Anti-Bend |
Up to 4,448N (1,000 lb), No Cracked |
|||||||
| Feature | Character-flame resistant, UV resistant, corrosion resistant, etc | |||||||
| Custom made | Flexiable OEM/ODM-size, colors, packaging can be customized | |||||||
| Tensile strength | Up to 134N (300lbf) | |||||||
| Extrusion | Fusion | |||||||
| Fire Resistant | 2 Hour & 4 Hour Noncombustible | |||||||
| Resistance to crushing | ID≥70% after test | |||||||
| Resistance to impact | 2.7J (2.0ft-lbf) | |||||||
| Deflection unde load | ﹤0.25mm deformation | |||||||
| Fire rating | UL 94V-0 | |||||||
| Markings Test | No visible fading in oven test above 120°C for 7 days | |||||||
| Permanency of printing | Yes | |||||||
| Rust & sunlight Resistant | Yes | |||||||
| Shipping | By sea | |||||||
| Samples | Available | |||||||
Regular sizes as shown in the table below
ENT Coils – Stripe
| Size(in) | OD(in) | ID(in) | Length Feet |
| 1/2 | 0.84 | 0.602 | Customized |
| 3/4 | 1.05 | 0.804 | Customized |
| 1 | 1.315 | 1.029 | Customized |
| 1-1/4 | 1.66 | 1.36 | Customized |
| 1-1/2 | 1.9 | 1.59 | Customized |
| 2 | 2.375 | 2.047 | Customized |
ENT Reels – Stripe
| Size(in) | OD(in) | ID(in) | Length Feet |
| 1/2 | 0.84 | 0.602 | Customized |
| 3/4 | 1.05 | 0.804 | Customized |
| 1 | 1.315 | 1.029 | Customized |
| 1-1/4 | 1.66 | 1.36 | Customized |
| 1-1/2 | 1.9 | 1.59 | Customized |
| 2 | 2.375 | 2.047 | Customized |
| 2-1/2 | 2.866 | 2.469 | Customized |
Information to be marked on conduits
The following should be clearly and permanently marked on the ENT tube at intervals of not more than 1.5 m (60 in):
content:
(A) The Manufacturer’s nName, Trademark or Other Recognized Identifier;.
(B) “ENT” Type.
(C) “FT4” when Tested According to Clause 7.3; CSA C22.2 NO.227.1-06 UL 1653 21.
(D) Construction Material “PVC”.
(E) Metric and Imperial Dimensions, such as 16 (1/2).
(F) Production Code (Date of Manufacture);
(G) “For Residential Attics 900 mm (3 ft) above the Bottom of the Ceiling Joists” when the ENT Material Complies with Clause 4.1.4;
(H) In the United States, when the Manufacturer has Multiple Plants Producing Electrical Non-Metallic Bellows, Identify the Production Plant. In Canada, Subparagraph (h) Does not Apply.
(I) In Canada,Trade Size 63 (2-1/2) should be marked “Canada Only”.
The Smallest Package of Finished Cut Lengths, Rolls or Reels Shall be Marked with:
(1)The Manufacturer’s Name, Trademark or Other Recognized Identifier;
(2) “ENT” Type;
(3) Construction Material “PVC”;
(4) Metric and Imperial Dimensions, such as 16 (1/2);
(5) The Total Length of the Product in the Package;
(6) The Manufacturer’s Instructions for Fixing the Solvent Connection Fittings (This Mark may Appear on the Packaging or in the Accompanying Booklet);
(7) “For Residential Attics 900 mm (3 ft) above the Bottom of the Ceiling Joists” when the Electrical Non-Metallic Bellows Material Complies with Section 4.1.4.
(8) In Canada, Trade Size 63 (2-1/2) should be Marked “Canada Only”.
(1) What is Corrugated Electrical Conduit?
Corrugated Electrical Conduit is a corrugated flexible conduit used for electrical raceways, which is designed to replace EMT, flexible metal conduit, or other raceway systems in accordance with Article 331 of the National Electrical Code. It can be installed in concrete slabs, fire-rated interior walls, directly buried, and buildings.
(2)Why You Need UL Listed Electrical Nonmetallic Tubing?
ETL electrical nonmetallic tubing range stands out with its multitude of benefits. They’re lightweight, easy-to-install, corrosion-resistant, and rust-free, offering notable savings compared to traditional metal conduits. Ideal for home renovations, education institutions, hospitals, governmental projects, and more.
ETL ENT electrical conduits profoundly enhance construction quality while reducing labor expenses.
These include
(1) Indoor electrical installation (2) Building renovation and refurbishment
(3) Transportation facilities such as railways, highways, bridges, etc. (4) Urban power grid construction and renovation
(5) Automation equipment and production lines (6) Mechanical equipment (7) Agricultural irrigation systems
(8) Home decoration (9) installation of electrical equipment such as lamps and sockets for line protection
(3)Here’s What Sets us Apart
Certification: Certification: Our PVC electrical non-metallic tubing conforms to the requirements of ul and NEMA standards and has excellent safety.
New materials: Made with 100% new materials, pursuing ultimate quality and performance.
Excellent fire resistance: UL 94V-0 Fire rating ensures rapid fire extinguishing, providing protection for your home or building.
Unparalleled durability: Heat resistance, sun resistance, and corrosion resistance ensure a long-lasting and reliable solution.
Strength：ETL is a leading manufacturer of high-quality electrical conduits, trusted by industry professionals for 10 Years+.ETL bringing you complete, beneficial, convenient, and high-quality electrical conduit and accessory products.
(4)We believe in
Safety first: Building reliable and safe electrical systems.
Quality craftsmanship: Precise engineering and attention to detail.
Customer satisfaction: Providing exceptional support and solutions.
Get exclusive solutions for your project immediately!
Contact ETL >> to learn about the differences in high-quality electrical conduits.
ETL electrical corrugated pipes and accessories are designed to handle even the most demanding electrical projects.
(1)Extraordinary strength: Up to 4,448N Anti-Bend impacts with ease.
(2)Flexible deflection: 2.7J impact resistant ratings, resists bending with ease.
(3)Industry-leading compliance: Meets and exceeds ul651 and ETL standards for ultimate peace of mind.
(1)Superior quality: ETL pvc electrical corrugated pipes have a series of impressive advantages: heat resistance, corrosion resistance, fire resistance, lightweight and flexible high strength and voltage resistance, excellent insulation performance, and good flame retardancy.
(2)Increased efficiency: Save money by avoiding costly delays.
(3)Effortless installation: No more time-consuming prep work before installation.
(1)Rapid extinguishing: The fire is quickly extinguished when the fire source is cut off.
(2).Harmless safety: Using ETL pvc electrical corrugated conduits,This advanced technology minimizes potential damage and keeps you and your property protected.
our pvc electrical corrugated pipes excel in outdoor installations.
(1)Heat resistance: Sunlight & UV resistance support.
(2)UV resistance: Stands strong against the damaging effects of sunlight.
(1)Lightweight construction: Easy to handle and install.
(2)Cost-effective solution:More durable and affordable than metal pipes, with cheaper shipping costs.
(3)Corrosion-proof: Enjoy lasting performance with guaranteed protection against rust.
With over 10 years of experience in the foreign trade of plastic piping.
ETL produce and distribute nationwide, providing one-to-one services to numerous companies in various countries such as the united states and australia.
our professional team can tailor perfect solutions according to your unique needs. experience the safety and reliability of ETL pvc electrical Corrugated conduits!
Get the full price list now by contact our sales team. >>
(1)OEM&ODM
OEM/ODM options are available for sizes, colors, and packaging.
(2)Quality
Provide overall solutions for various high-quality plastic pipes and accessories products.
(3)Price
Can be negotiable with flexible solution.
(4)Main Business
Supply PVC Electrical Conduit & Fittings:
(1) Rigid and corrugated conduit pipe for electrical, building, and communication projects. SCH40, SCH80, DB60, DB100, DB120, TYPE A, TYPE EB PVC electrical conduit (ETL & ASTM certified).
(2) Heavy duty & medium duty conduit (AS/NZS Certified).
(3) DB2 & ENT conduit (CSA & CUL certified).
(4) Solar conduit (IEC & AS/NZS certified).
(5) ETL rigid & corrugated conduit (IEC & ISO certified) and that's just the tip of the lceberg!
(6) We also offer a wide variety of electrical box, bend, coupling, tee, elbow,ib bodies, reducer, connectors, adapter, bushing, cap and more.
1、Construction industry
Indoor electrical installation: ETL PVC corrugated electrical conduit is very suitable for protecting and fixing indoor electrical circuits due to its lightweight, easy to bend, and easy installation characteristics. It can effectively hide wires, making the indoor environment cleaner and more beautiful.
Building renovation and refurbishment: During the renovation or refurbishment of old buildings, ETL PVC corrugated electrical conduits can serve as important components for updating electrical systems. Its corrosion resistance and long lifespan ensure the long-term stable operation of the electrical system.
2、Transportation and Infrastructure
Transportation facilities: ETL PVC corrugated electrical conduits are used to protect electrical circuits from external environmental damage in transportation facilities such as railways, highways, and bridges. Its weather resistance and pressure resistance ensure the safe operation of electrical circuits under various harsh conditions.
Urban power grid: In the construction and renovation of urban power grids, PVC corrugated electrical conduits, as an important component of cable conduits, play a guiding and protective role. It helps to arrange and fix cables neatly, improving the safety and reliability of cable systems.
3、Industry and Manufacturing
Factory automation: In highly automated factories, ETL PVC corrugated electrical conduits are widely used for the protection of electrical circuits such as robots, automation equipment, and production lines. Its flame retardancy and corrosion resistance ensure the safe operation of electrical circuits in complex industrial environments.
Mechanical equipment: Among various types of mechanical equipment, ETL PVC corrugated electrical conduits are used to protect wires and cables from mechanical damage and external environmental interference. It helps to extend the service life of wires and cables, and improve the reliability and stability of equipment.
4、Other fields
Agricultural irrigation: Although ULP PVC corrugated electrical conduits are mainly used for protecting electrical circuits, they can also be used as pipelines for transporting water resources in some agricultural irrigation systems. Its pressure resistance and weather resistance enable it to operate stably under various environmental conditions.
Home decoration: In home decoration, ULP PVC corrugated electrical conduits can be used to hide and protect wires, improving the safety and aesthetics of the home environment. It can also be used for installing circuit protection for electrical equipment such as lamps and sockets.
